Bayonet LED replacement Bayonet

LED Replacement



Single Contact

Bayonet



and



Double Contact

Bayonet



Magnum Ring

Bayonet LED Replacement



Single Contact and

Double Contact



Specially designed to replace most bayonet 15mm (BA15) incandescent bulbs used in many boats and RVs.



Equivalent to an 18W incandescent beam.

Bright enough to read a book.

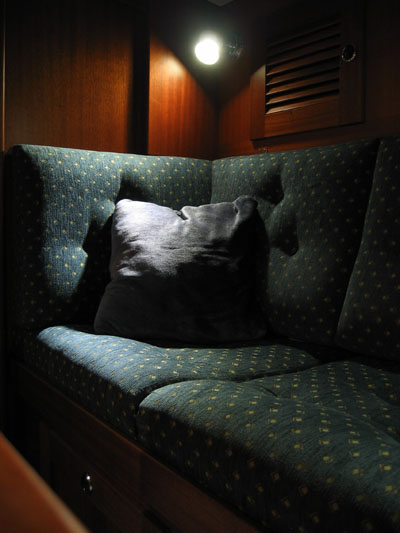

Ideal for cockpit, map reading lights, emergency lights, or any night illumination.


Not hot, warm to the touch.



All existing bulbs should be replaced with Dr. LED's bulbs to achieve all the benefits of superior LED technology.



For axial (forward) direction fixtures only.

Should not be used behind colored lenses.

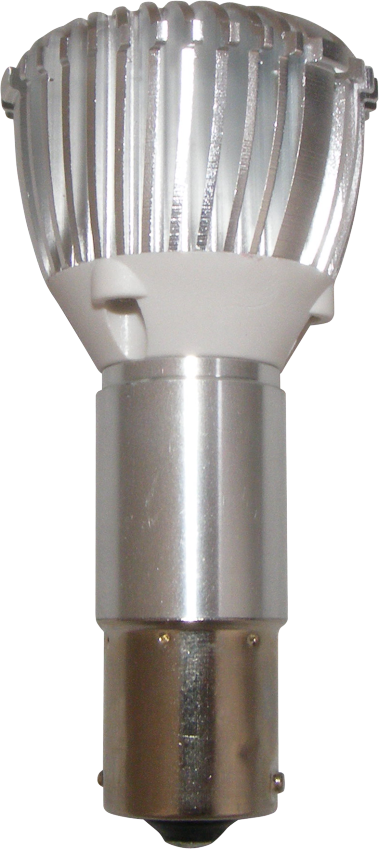

Single Contact

Bayonet 1C Magnum RingTM

Part No.: 8001245

Ref. No.: BA15S-15W-D-1C

Cross Ref: #1003, 1141, etc.



Double Contact Index

Bayonet 2C I Magnum RingTM

Part No.: 8001252

Ref. No.: BAY15D-15W-D-2C-I

Cross Ref: 1034, etc.

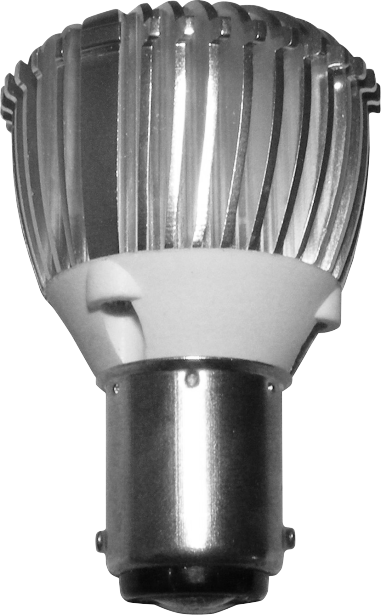

Double Contact Non-Index

Bayonet 2C NI Magnum RingTM

Part No.: 8001269

Ref. No.: BA15D-15W-D-2C-NI



Cross Ref: 90, 1004, etc.



Specifications:


Nominal Voltage:      11-15 VDC
Current Draw:     ~0.08A
Max. Diameter (mm): 38 mm (1.5")
Max. Height (mm):    28 mm (1.1")
Weight (g) :      ~50 g
Beam Angle:   Spot
Color:   Warm White (~3200 K)
Connection:   Bayonet 15mm
