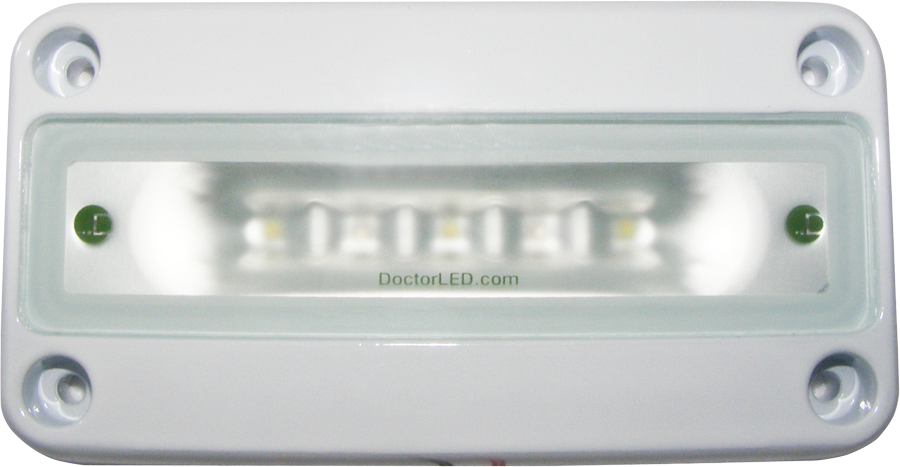

Marine Engine Room Red White LED Light

Marine LED Engine Room Light:

12V 24V The Gold Standard Engine Room LED Light.

PN:9000500 Dr. LED online store logo                 US flag gif

  • Three US CREE High-Power LEDs
  • Surface Mount Low Profile 5/8” Red / Cool White High-Power LED Engine Room Light
  • Two wire installation with built-in dimming and red / white light selection with only one standard external power switch.
  • Powerful 750+ cool white lumen rated high-power flood LEDs provide the highest lumen-per-watt LED engine room light, outperforming other LED lights in its class.
  • Low current draw ~0.7A @ 12V.
  • Die cast aluminum alloy housing provides a ample heat sink as well as ingress protection to ensure long life operation.
  • Marine grade finish.
  • Ultra-long life.  Shock and vibration resistant.
  • NMMA, USCG, ISO 8846 & SAE J1171 Ignition Protection Compliant.
CREE LED logo

Dr. LED Marine Engine Room Light



See a "How2" install video.
YouTube Engine Room LED Light




Marine LED Engine Room Light Features:

•LED Light Switchable between Red or White with built-in dimming.
•By toggling the on/off switch momentary intensity can be set for both red and white.
•NMMA, USCG, ISO & SAE Ignition Protection Compliant.
•IP67, MIL-STD-810G Vibration & Shock Resistant, ASTM B117 Salt Spray (Fog) Compliant.
•CE, FCC Part 15, RoHS Compliant.
•6,000 Degree Kelvin Cool White with 750 Lumens.
•50,000 Hour Life Span Rated US CREE LEDs.
•Operating Temperature: -40 to +145 Degree F (withstands temperature extremes).
•Does not work with dimmers.
•Designed in the USA.



Dr. LED online store logo



PN:9000500


LED Marine Engine Room Light Specifications:

Electrical:
10-30VDC (~0.7A @ 12.8 VDC, White Light)
Max Input Power: 3W (Red), 9W (White)
Non-Polarized Connection
Under-Voltage and Voltage Spike Protected
Electrically Protected Against RFI/EMC Interference
Integrated Thermal Management

Mechanical:
Durable Powder Coated Finish
Tempered Glass Lens
Die Cast Aluminum Alloy Housing
Low Profile European Design
6” Long 20AWG 300V Red/Black Cable
Dimensions: 133mm (~5.24”) length, 70mm (~2.76”) width, 16mm (~0.63”) tall
Weight: 216g (7.6oz)

dimensions pdf
Dimensions Drawing
