Callahan 12-Inch Marine LED Light Bar
Low-profile warm-white lighting with touch-free on/off and dimming control.
The 12-inch Callahan model is the only size currently available.

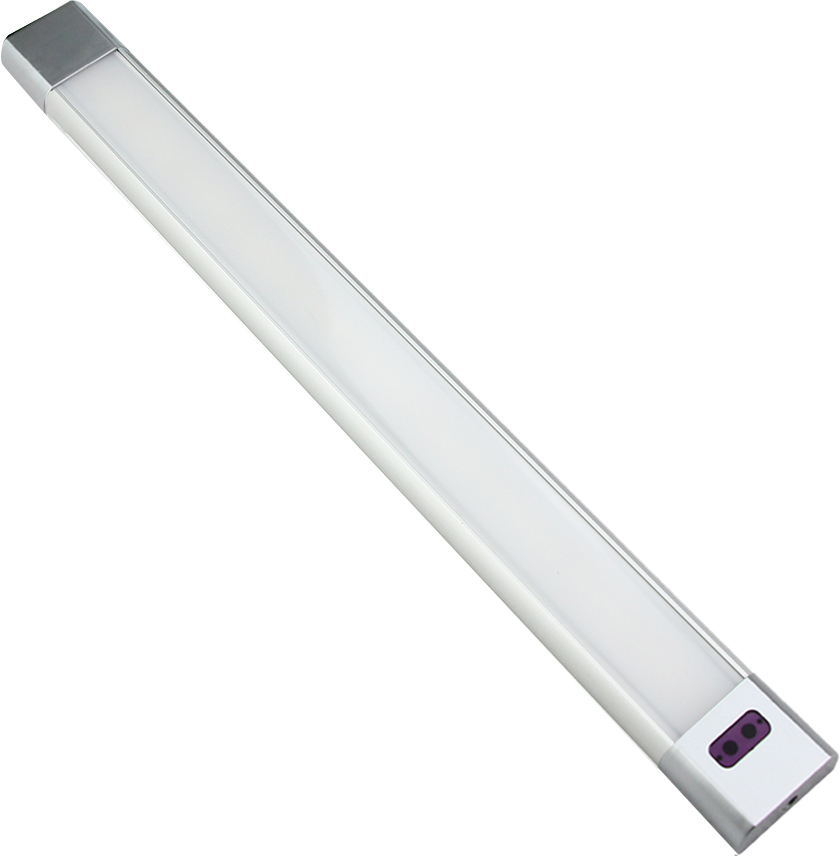

The Callahan 12-inch marine LED light bar is a slim surface-mount fixture designed for protected cabins, galleys, navigation stations, lockers, and other interior task-lighting applications.
A built-in infrared sensor provides touch-free on/off and dimming control. A brief hand movement near the sensor turns the light on or off, while holding a hand near the sensor adjusts the brightness. The fixture returns to the previously selected brightness level when switched on.
Warm-white 2700K illumination provides a comfortable interior appearance, while the low-profile housing and reversible side connection simplify installation.
The fixture is manufactured using carefully selected components for dependable interior lighting performance. Simple surface-mount installation and touch-free operation make it practical for cabin and under-cabinet task lighting.
An 8-inch polarized pigtail is supplied, with a connector that can be plugged into either side of the fixture. The supplied connector may be attached at either end of the fixture, allowing the cable to exit from the side best suited to the installation.
Touch-Free On/Off and Dimming
- Move a hand or finger within ~1 inch of the infrared sensor to turn the light on or off.
- When switched on, the light returns to the last brightness setting.
- Hold a hand near the sensor to adjust brightness.
- Each successive hold reverses direction: one hold brightens, the next hold dims.
Control uses an infrared proximity sensor for non-contact on/off and dimming near the fixture.
Product Features
- Touch-free infrared on/off control
- Integrated brightness adjustment
- Returns to the last selected brightness setting
- ~280-lumen output
- ~2700K warm-white light
- Wide 150-degree beam angle
- 12VDC input
- ~5W maximum input power
- ~0.4A operating current
- Slim surface-mount profile
- Connection available from either side of the fixture

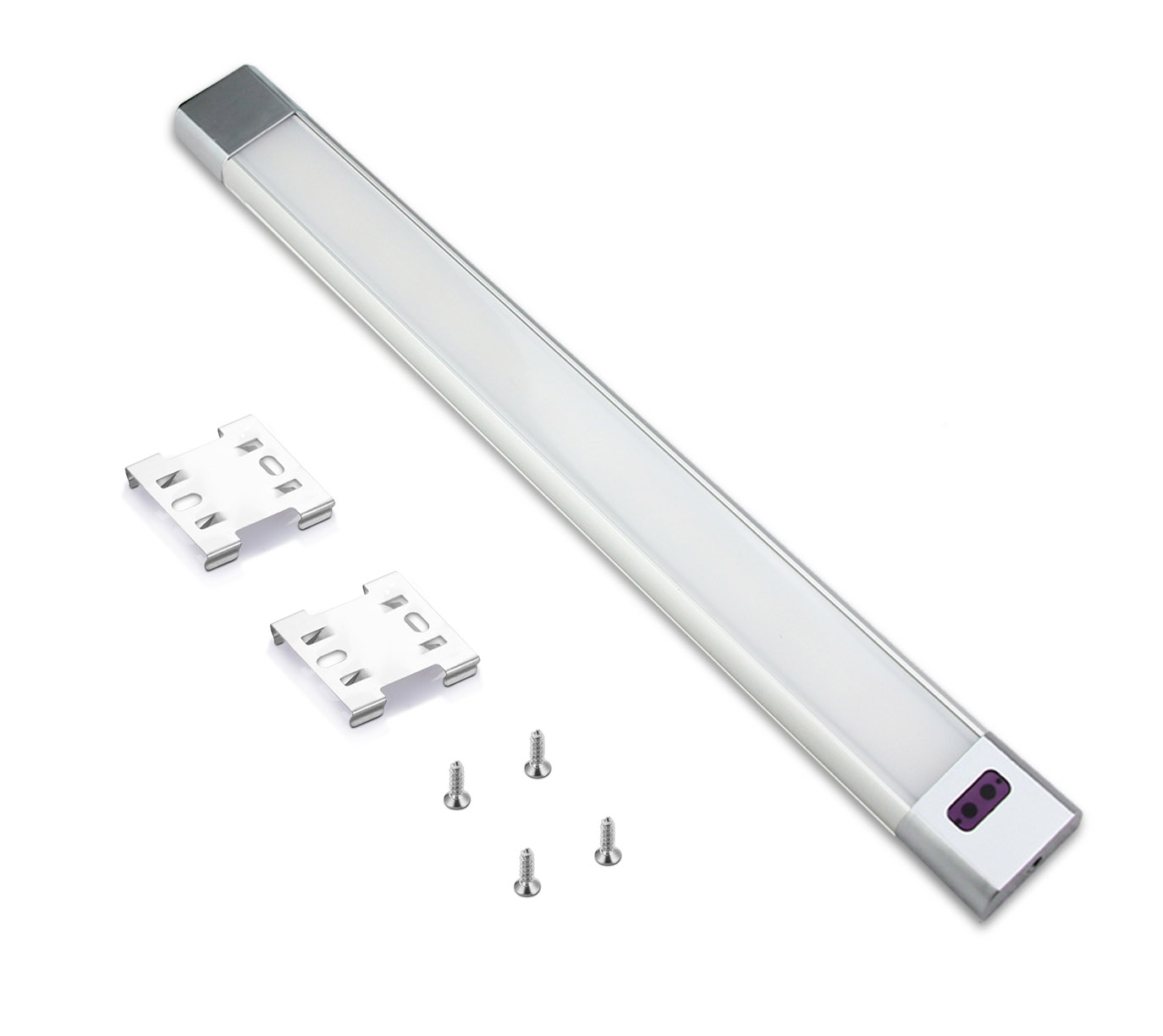

- Stainless-steel snap-on mounting brackets
- Silver finish
- IP20 ingress rating
- Suitable for protected interior installations
Typical Applications
- Marine cabins
- Galleys
- Navigation stations
- Shelves and lockers
- Under-cabinet task lighting
- Sleeping quarters
- Companionways
- Utility areas
- Protected RV or vehicle interiors using compatible 12VDC systems
Because the fixture is IP20, install it only in protected interior or dry locations.
Technical Specifications
| Specification | Value |
|---|---|
| Product | Callahan 12-Inch Marine LED Light Bar |
| Part Number | PN 9000272 |
| Light Color | Warm white |
| Color Temperature | ~2700K |
| Light Output | ~280 lumens |
| Beam angle | ~150 degrees |
| Voltage Input | 12VDC |
| Maximum input power | ~5W |
| Operating current | ~0.4A |
| Sensor idle current | ~0.01A |
| Electrical Connection | Polarized pigtail with reversible end connection |
| Cable | 8 in. 22 AWG UL2468 pigtail |
| Operating Temperature | −4 °F to 140 °F / −20 °C to 60 °C |
| Length | 11.8 in. |
| Width | 1.2 in. |
| Height | 0.5 in. |
| Weight | ~2.8 oz |
| Ingress rating | IP20 |
| Finish | Silver |
| Mounting hardware | Stainless-steel snap-on brackets and pigtail |
IP20 indicates protection against contact with larger solid objects but does not provide water-ingress protection. Install the fixture in a protected interior location.
Specifications are approximate. Confirm PN 9000272 and system voltage before ordering.
Installation
Mount the fixture with the included stainless-steel snap-on brackets in a protected interior location. Route the polarized pigtail to the vessel’s 12VDC supply, selecting the fixture end that best suits cable routing.
