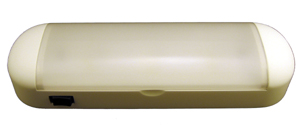

John™ 8-Inch Under-Cabinet Marine LED Light
Warm-white, low-profile task and cabin lighting for 12V and 24V marine systems.
Warm-White Marine Task Lighting
The Dr. LED 8-inch under-cabinet light is a compact surface-mount fixture designed for marine cabins, galleys, navigation stations, lockers, and other task-lighting applications. Its warm-white output provides comfortable illumination while consuming substantially less power than a conventional incandescent fixture.
The three-position switch provides high, off, and low settings, allowing users to select the desired light level without an external control. Patented integrated voltage regulation helps maintain consistent brightness throughout the 10–30VDC operating range, reducing flicker caused by normal vessel voltage variations and supporting long LED service life.
The fixture is manufactured using carefully selected components for dependable long-term operation.
Power consumption ranges from ~1.8W on low to 3W on high, helping reduce demand on the vessel’s electrical system. High-efficiency LED technology provides useful task lighting with low power consumption.
Designed to provide usable illumination comparable to selected conventional under-cabinet fixtures using bulbs up to ~40W.
Product Features
- Three-position high/off/low switch
- Two warm-white brightness levels
- ~120+ lumens on high
- ~3000K warm-white output
- ~1.8–3W power consumption
- 10–30VDC input
- Patented integrated voltage regulation
- Rugged construction
- No fragile filament
- Lead- and mercury-free
- No ultraviolet output
- Compact surface-mount design
- Polymer lens and housing
- Designed for marine cabin and task-lighting applications
- PWM dimmer compatible
Typical Applications
- Galley counters
- Cabin task lighting
- Navigation stations
- Shelves and lockers
- Work surfaces
- Companionways
- Utility areas
- RV and other compatible 12V or 24V interiors, where appropriate
Technical Specifications
| Specification | Value |
|---|---|
| Product | 8-Inch White Under-Cabinet Marine LED Light |
| Part Number | PN 8001696 |
| Voltage Input | 10–30VDC |
| Current draw (high) | ~0.3A at 12V |
| Current draw (low) | ~0.15A at 12V |
| Power Consumption | ~1.8–3W, depending on setting |
| Light Output | ~120+ lumens |
| Color Temperature | ~3000K |
| Lens material | Polymer |
| Housing material | Polymer |
| Dimensions | 8 × 2.5 × 1.4 in. |
| Metric dimensions | 203 × 63.5 × 35mm |
| Mounting | Three mounting holes |
| Electrical Connection | Polarized 3-inch pigtail cable |
| Weight | ~5.9 oz / 168 g |
Specifications are approximate. Confirm PN 8001696 and system voltage before ordering.
Installation and Drilling Template
