Polar Star 20

9mm Miniature Single Contact Bayonet Marine LED Replacement Bulb

12V White PN:8001849


12 VDC 2NM 9mm miniature single contact bayonet marine LED replacement bulb for navigation & deck lights.


Replaces aqua signal series 20 navigation anchor light bulb and aqua signal series 25 deck light bulb.


Finally, a 1-to-1 BA9S LED replacement bulb.



Product Features:

  • Replaces 9mm miniature bayonet bulbs.
  • Replaces aqua signal series 20 nav bulbs and aqua signal series 25 deck light bulb.
  • * High-Power LED      *2 NM visibility      *12 VDC       *Warm White
  • Zero radio frequency (RF) emission, surface-mount-device design.
  • Conformal coated & use of long life components: e.g. ceramic capacitor (not low hour electrolytic capacitor).
  • Internal circuitry provides constant current draw regardless of voltage fluctuations from the source, meaning no flickering and longer LED life.
  • Long service life, shockproof, and ultra-rugged with no filament to burn out or break.
  • Very low power consumption (approximately 1 W).
  • Lead and mercury free, no UV output.
  • Designed in the USA.
  • Dimmable with PWM dimmers.
  • Dimensions: ~28mm (1.1) long, 12mm (0.47) dia.

Descriptions:


Finally, a true one-to-one LED replacement bulb for incandescent navigation lights using 9mm miniature bayonet bulbs. This single contact bayonet LED bulb is specially designed as a direct replacement for many navigation and deck lights.  It is compatible with aqua signal series 20 navigation anchor light and aqua signal series 25 deck light.  This high-quality high-power LED bulb is the perfect way to reduce energy consumption on your boat with a current draw of only about 0.1A.  Its incredible reliability means an end to frequent climbs up the mast to replace navigation light bulbs.


Replaces bulb trade # 53, 57, 181, 1416, & 1816.

Replaces Ancor bulb # 520053, 520057, 521126, 521416, 529337, & 529355.


Compatible with 12V aqua signal fixtures series 20 anchor light  bulbs 90384, 90496, etc.


Compatible with 12V aqua signal fixtures series 25 deck light  bulbs 90384, 90496, etc.

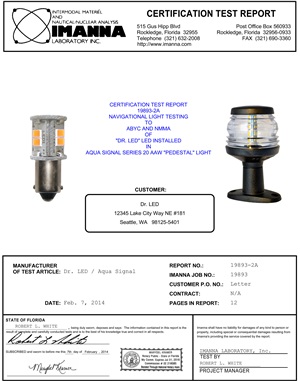

                                        USCG 2nm cert ba9s



ABYC A-16 and USCG COLREG 1972 (IMO) Standards Certificate: Certified for correct Chromaticity, Luminous Intensity, and Cut-off Angles.


 aqua signal series 20 anchor light with LED



LED Replacement Bulb for aqua signal series 20 anchor light. 2Nm Certified.


ba9s LED 2nm nav bulb


aqua signal series 25 deck light with LED

LED Replacement Bulb LED for
aqua signal series 25 deck light.



Waterproof version available by special order only (not for nav lights):


PN:BA9S-Deck.
