Replacement Bulb Reference
| Brand | Bulb Numbers |
|---|---|
| GE | #68, #90, #94, #1004 |
| Perko | Bulb Fig. 0337 · 0337011DP · 0337012DP |
HEX GE90 / GE90 Star · BA15D Non-Index
GE90 / GE #90 Navigation LED Replacement Bulbs
12V & 12/24V 2NM Certified Bulbs • White • Red • Green • Blue • Perko Fig. 0337 • BA15D Non-Index
2NM certified LED replacements for GE #68 / #90 / #94 / #1004 and Perko Fig. 0337 in compatible navigation fixtures.
Replaces / Fits
- GE #68, #90, #94, #1004
- Perko Bulb Fig. 0337 (0337011DP, 0337012DP)
- Perko Series 0329, 0337, 0362, 0371, 0455, 0466, 1134, 1137, 1209, 1301, 1311, 1330, 1400, 1401
- Scotty and similar fixtures using GE #68/#90/#94/#1004 or Perko Fig. 0337
- Need Hella Series 2492? See H2492 Star BA15S single-contact.
Will this fit my light?
Will this fit my Perko Fig. 0337?
Yes, in compatible Perko fixtures that use Bulb Fig. 0337 (including 0337011DP and 0337012DP) and related Perko series listed above. Confirm voltage and fixture clearance before ordering.
Will this replace GE #68, #90, #94, or #1004?
Yes. HEX GE90 and GE90 Star are designed as one-to-one LED replacements for GE #68, #90, #94, and #1004 in compatible navigation and anchor fixtures.
Will this fit Hella Series 2492?
No. Hella Series 2492 uses the BA15S single-contact H2492 Star (PN 8000067). The HEX GE90 / GE90 Star products on this page are BA15D double-contact non-index bulbs.
Will this fit Aqua Signal Series 40?
No. Aqua Signal Series 40 typically uses a BAY15D index bayonet. For those fixtures, see Polar Star 40.
Dr. LED HEX GE90 and GE90 Star bulbs are low-draw LED replacements for common BA15D double-contact non-index navigation bulbs used in Perko, Scotty, and similar anchor and navigation lights. Models draw about ~0.12A (~1W) and use a non-polarized connection. HEX GE90 Star models provide Zero Radio Frequency (RF) Emissions and No Electromagnetic Interference (EMI).
HEX GE90 and GE90 Star models are certified for 2NM navigation-light performance in compatible fixtures and share the same certified LED engines used in Polar Star 40. The HEX GE90 series features a lower-profile design than the Polar Star 40 series.
For a manufacturer-organized reference:
Marine Navigation Light LED Replacement Guide
Not sure which bulb you need? Try our:
Interactive Bulb Selection Guide
Quickly identify the correct Dr. LED replacement bulb by Bulb Image, Ancor® Number, Trade Bulb Number, or Navigation-Light Fixture.
HEX GE90 · GE90 Star · BA15D Non-Index
- HEX GE90 and GE90 Star: certified for 2NM in compatible fixtures
- Shares the same certified LED engines used in Polar Star 40
- HEX GE90 series: lower-profile design vs. Polar Star 40
- Replaces GE #68, #90, #94, and #1004
- Replaces Perko Bulb Fig. 0337
- BA15D double-contact non-index (non-polarized)
- ~1W power consumption · ~0.12A
- 12V and 12/24V models
- White, red, green, and blue HEX options
- Zero Radio Frequency (RF) Emissions and No Electromagnetic Interference (EMI)
- Solid-state construction with no fragile filament
2NM Navigation-Light Applications
HEX GE90 and GE90 Star models are certified for 2NM navigation-light performance in compatible fixtures and share the same certified LED engines used in Polar Star 40. The HEX GE90 series features a lower-profile design than the Polar Star 40 series.
Certification applies to the bulb, fixture, lens, operating voltage, and installation configuration.
(same certified LED engines)

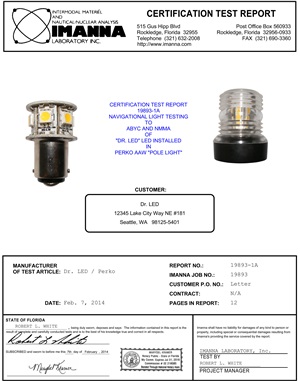

ABYC A-16 and USCG COLREG 1972 (IMO) standards for chromaticity, luminous intensity, and cut-off angles.
Available Models
| Model | Voltage | Base | Part Number | Shop |
|---|---|---|---|---|
| HEX GE90 Star White | 12V | BA15D | PN 9000425 | Shop PN 9000425 |
| HEX GE90 Star Red | 12V | BA15D | PN 9000517 | Shop PN 9000517 |
| HEX GE90 Star Green | 12V | BA15D | PN 9000524 | Shop PN 9000524 |
| HEX GE90 Star Blue | 12V | BA15D | PN 9000531 | Shop PN 9000531 |
| GE90 Star White | 12/24V | BA15D | PN 8001627 | Shop PN 8001627 |
HEX GE90 dimension drawing (PDF) · GE90 dimension drawing (PDF)
Compatible Fixtures
Confirm the original bulb number, fixture model, voltage, lens configuration, and required visibility before ordering.
| Manufacturer | Fixture Series / Models | Example fixtures | Notes |
|---|---|---|---|
| Perko | 0329, 0337, 0362, 0371, 0455, 0466, 1134, 1137, 1209, 1301, 1311, 1330, 1400, 1401 |
|
Many fixtures using GE #68/#90/#94/#1004 or Perko Fig. 0337 |

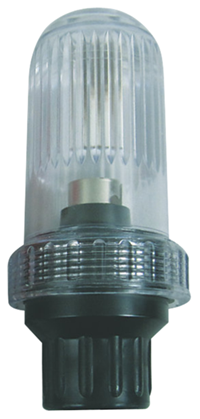

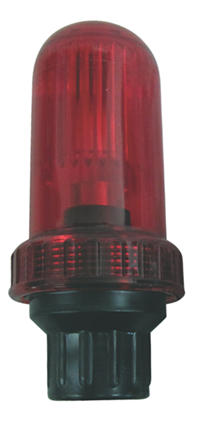

| Scotty | 802C, 803C, 802R, 803R |
|
— |
| Hella | 2492 |
|
Not sold on this page. See H2492 Star (PN 8000067) BA15S single-contact. |
Product Features
- One-to-one LED replacements for GE #68/#90/#94/#1004 and Perko Fig. 0337
- HEX GE90 and GE90 Star: certified for 2NM in compatible fixtures
- Shares the same certified LED engines used in Polar Star 40
- HEX GE90 series: lower-profile design vs. Polar Star 40
- BA15D double-contact non-index (non-polarized)
- ~1W power consumption · ~0.12A current draw
- 12V HEX colors (white, red, green, blue) and 12/24V white Star models
- Conformal-coated circuitry with long-life components (e.g., ceramic capacitors)
- Zero Radio Frequency (RF) Emissions and No Electromagnetic Interference (EMI)
- Integrated regulation helps maintain stable LED operation across normal vessel voltage variations, reducing visible flicker and supporting long LED service life
- Rugged construction with no fragile filament
- PWM dimmer compatible for non-navigation applications
- Reflector can be removed to shorten the bulb when clearance requires it
- Designed in the USA
Do not dim required navigation lighting during operation. For dome lights, see Dome Light LED Conversion Kits.
Technical Specifications
| Specification | Value |
|---|---|
| Products | HEX GE90 Star · GE90 Star |
| Part Numbers | PN 9000425 · 9000517 · 9000524 · 9000531 · 8001627 |
| Base | BA15D double-contact non-index (non-polarized) |
| Replacement | GE #68/#90/#94/#1004 · Perko Fig. 0337 |
| Nominal systems | 12V (HEX) · 12/24V (GE90 Star) |
| Colors | White · red · green · blue (HEX); white (Star models) |
| Current Draw | ~0.12A |
| Power Consumption | ~1W |
| Navigation Range | 2NM certified |
| RF / EMI | Zero Radio Frequency (RF) Emissions and No Electromagnetic Interference (EMI) |
| Dimming | PWM compatible for non-navigation uses |
What Customers Say
We have replaced all our running, anchor and steaming bulbs with LEDs. While a sizable cost outlay, they have proven to be high quality and reliable. And the power consumption is amazing! All our lights together don't equal one of our old incandescent bulbs.
Looking for a Different Navigation-Light Replacement Bulb?
Frequently Asked Questions
What bulbs do HEX GE90 and GE90 Star replace?
They are designed as one-to-one LED replacements for GE #68, #90, #94, and #1004 bulbs, and for Perko Bulb Fig. 0337 (including 0337011DP and 0337012DP), in compatible fixtures.
Are HEX GE90 and GE90 Star certified for 2NM?
Yes. HEX GE90 and GE90 Star models are certified for 2NM navigation-light performance in compatible fixtures and share the same certified LED engines used in Polar Star 40.
What is the difference between GE90 BA15D and H2492 Star?
HEX GE90 models are 12V multi-color BA15D double-contact non-index bulbs, and GE90 Star PN 8001627 is the 12/24V white BA15D model. H2492 Star is a separate BA15S single-contact product for Hella Series 2492; see H2492 Star.
Will this fit Hella Series 2492?
No. Hella Series 2492 uses the BA15S single-contact H2492 Star (PN 8000067). The products on this page use BA15D double-contact non-index bases.
How does HEX GE90 compare with Polar Star 40?
HEX GE90 and GE90 Star share the same certified LED engines used in Polar Star 40. The HEX GE90 series features a lower-profile design than the Polar Star 40 series.
Are the connections polarized?
HEX GE90 and GE90 Star BA15D models use a non-polarized connection. Confirm base type and fixture polarity requirements before installation.
Can the reflector be removed?
Yes. The reflector can be removed to make the bulb shorter when fixture clearance requires it.
