Polar Star 40 Series


15mm Bayonet Index and Non-Index Marine Navigation Light LED Replacement Bulbs

12V 24V 2nm Visibility 15mm Bayonet Navigation Light LED Replacement Bulbs for aqua signal, Perko, Hella, etc. Marine Navigation Lights

2nm Visibility

15mm Bayonet Base, Non-Polarized

(Index/Offset Pins and Non-Index/Level Side Pins)

After-Market

LED Replacement Bulbs for Navigation Lights.

  • 2nm Certified LED Light "Engines"
  • Single Color (Warm White, Red , Green, & Amber/Yellow)
  • Bicolor (Red & Green)
  • Tricolor (Warm White, Red, & Green)
  • 12/24VDC and 120VAC
  • Low Power Draw, ~1.5W (Non-Polarized Connection)
  • 2nm Certified USCG ABYC A-16 After-Market Bulbs
  • Direct LED Replacements for Most Navigation Lights
  • Ultra-Rugged with No Filament to Burn Out or Break


2nm bayonet LED nav bulb

US flag gifLED


Descriptions:



These Marine LED bulbs are specially designed as direct replacements for many navigation lights available in the market such as those from Aqua Signal® (series 40, 41, 42, 50, 55) as well as the ones from Attwood®, Hella®, Perko® and several other manufacturers.  These high-quality bulbs are the perfect way to reduce energy consumption on your boat with low current draw.  They are especially well-suited for mast mounted lights, as their incredible reliability will mean an end to frequent climbs up the mast to replace navigation light bulbs.



ABYC A-16 and USCG COLREG 1972 (IMO) Standards Certificates: Certified for correct Chromaticity (white, red, and green), Luminous Intensity, and Cut-off Angles.

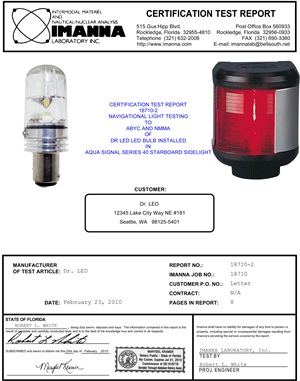

2NM Cert USCG Red

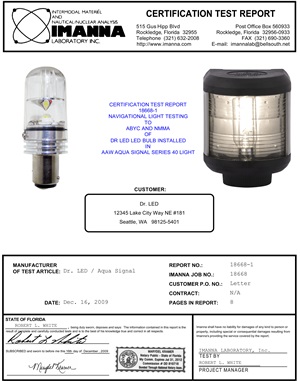

2nm cert USCG White 2NM USCG Cert Green



12/24V Index Models:


White Polar Star 40

PN:8001757

For anchor, stern, masthead (steaming, running) navigation lights.


Red Polar Star 40

PN:8001764

For port side-lights.


Green Polar Star 40

PN:8001771

For starboard side-lights.


Amber/Yellow Polar Star 40

PN:8000043


Bi-Color Polar Star 40

PN:8001634

For both top and bottom mount navigation bicolor bow lights.


Tri-Color Polar Star 40

PN:8001450
For your tricolor navigation lights (tricolor stacks).

(Does not work with Perko tricolor light.)





         Dr. LED Online Store

BAY15D
(15mm bayonet index LED navigation bulbs)



For single, bicolor, & tricolor aqua signal series 40, 41, 42, 50, 55, etc. navigation lights.



 aqua signal navigation lights series 40 41 42 50 55

aqua signal series 40 anchor light

aqua signal navigation lights series 40 41 42 50 55
aqua signal series 40 port side navigation light
aqua signal navigation lights series 40 41 42 50 55
aqua signal series 40 starboard side navigation light
aqua signal navigation lights series 40 41 42 50 55
aqua signal series 40 bow combination navigation light
aqua signal navigation lights series 40 41 42 50 55
aqua signal series 40 tricolor anchor navigation light



For single color Hella series 2984, 2386, 2988, etc. navigation lights.


hella series 2984 mastheadnavigation light

Hella series 2984 masthead navigation light.

hella series 2984 bicolor bow light
Hella series 2984 bicolor bow navigation light.

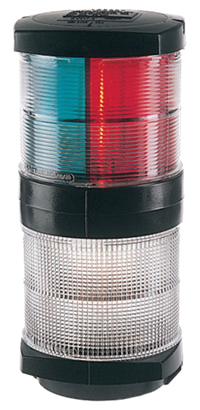

 Hella series 2984 tricolor stack

Hella series 2984 tricolor navigation light.



Perko series 0200 navigation light

Perko series 0200 navigation light
Perko series 0200 navigation light

For Perko series 200 navigation lights (Bulb Fig. 0375).




Replaces aqua signal bulbs 90005, 90006, 90002, 90003, etc.


Replaces Hella bulbs 78290, 78291, 78292, 78293, 78297, 8GA003488-121, etc.


Replaces Perko bulbs 037512V10W, 037512V25W, 037524V10W,

037524V25W, etc.





2nm bayonet LED nav bulb

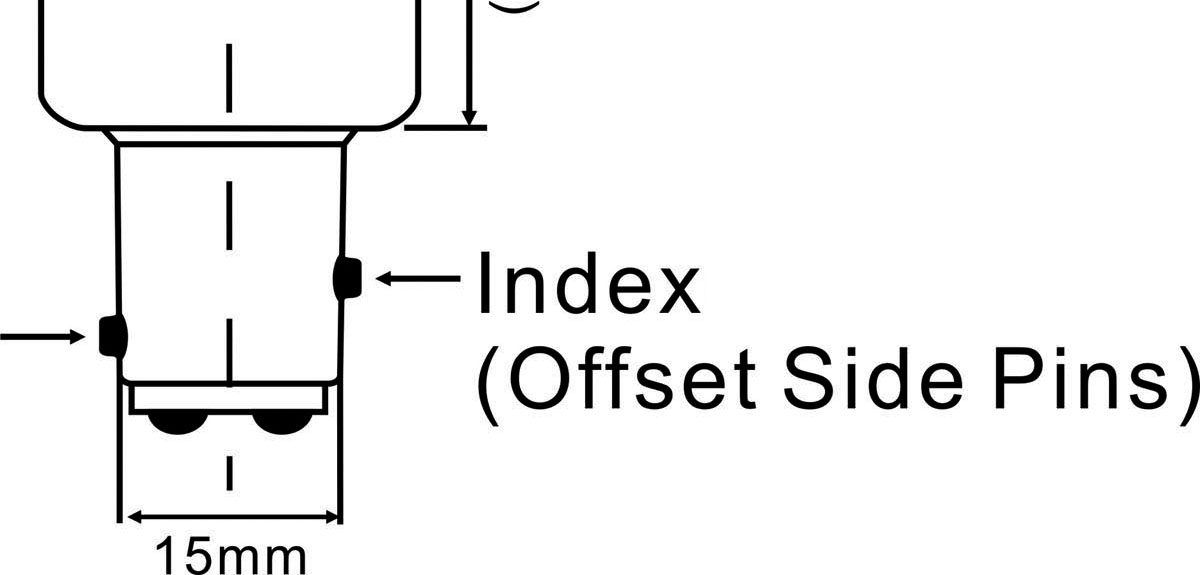

BAY15D

Index Bayonet Base

Non-Polarized





Dimensions Drawing

12/24V Non-Index Models:


White Polar Star 40 NI

PN:8001078

For anchor, stern, masthead (steaming, running) navigation lights.

Red Polar Star 40 NI

PN:8001382

For port sdie-lights.


Green Polar Star 40 NI

PN:8001405

For starboard sdie-lights.



BA15D
(15mm bayonet non-index nav LED bulbs)



For single colored Perko series 1127, 1128, 1129, 1130, etc. navigation lights (Perko Bulb Fig. 0374).

 Perko series 1127 navigation light

Perko series 1127 navigation light
Perko series 1127 navigation lights.
Perko series 1130 navigation light

Perko series 1130 navigation light.


Replaces Perko bulbs 0374001CLR, 0374002CLR, etc.







2nm bayonet LED nav bulb

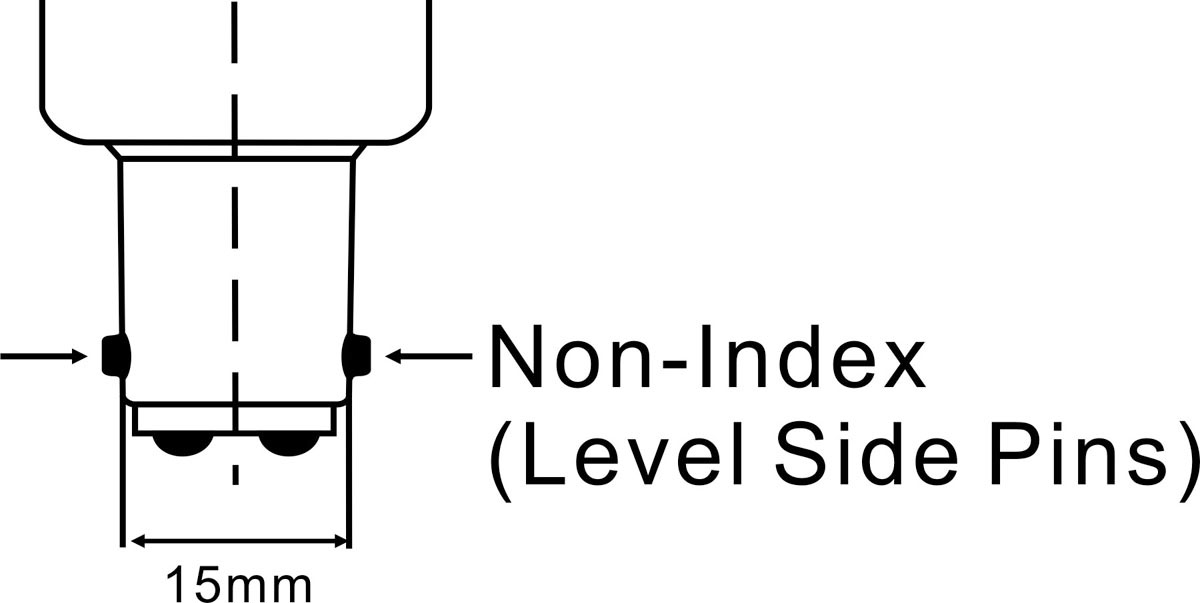

BA15D

Non-Index Bayonet Base Non-Polarized








Dr. LED Online Store


120V 3W Index Models:


120V White Polar Star

PN:9000388

3NM For anchor, stern, and steaming (running) lights.


120V Red Polar Star

PN:9000647

2NM for port lights.


120V Green Polar Star

PN:9000654

2NM for starboard lights.




       Dr. LED Online Store


BAY15D
(15mm bayonet index LED nav bulbs)



For single aqua signal series 40, 41, 42, 50, 55, etc.



For single color Hella series 2984, 2386, 2988, etc..



For single color Perko series 200 (Bulb Fig. 0375).


Replaces aqua signal bulbs 90285, 90286, etc.


 aqua signal series 55 masthead light

aqua signal series 55 masthead light


120VAC LED bulb for aqua signal

BAY15D

Index Bayonet Base

120V 3W Non-Index Models:


120V White P374-4 NI

PN:9003744

3NM For anchor, stern, and steaming (running) lights.


120V Red P374-4 NI

PN:9000661

2NM for port lights.


120V Green P374-4 NI

PN:9000678

2NM for starboard lights.




BA15D (15mm bayonet non-index nav LED bulbs)



For single colored Perko series 1127, 1130, etc. (Perko Bulb Fig. 374-4).

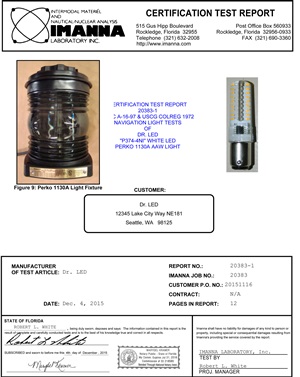

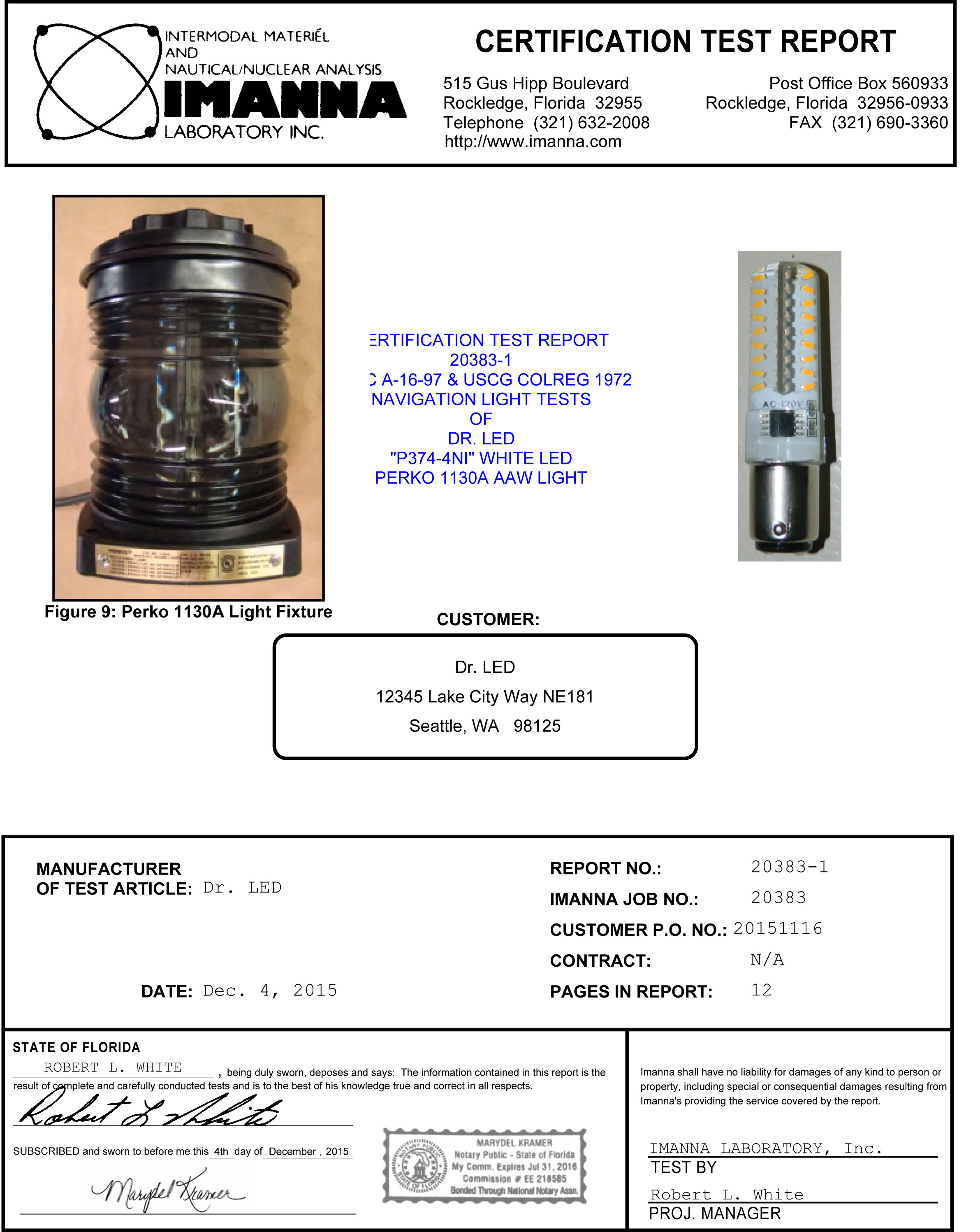

120VAC 3NM USCG Cert

3NM Certified.

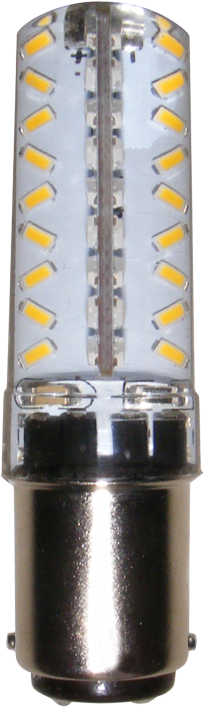

Perko 3744 120V LED bulb

BA15D

Non-Index Bayonet Base



FAQs and Comments:



1) We recommend using red LED bulb for nav lights with red lens, green LED bulb for nav lights with green lens, white LED bulb for nav lights with clear lens, bicolor LED bulbs (US patented, Dr. LED) for nav lights with bicolor lens, and tricolor LED bulb (US patented, Dr. LED)  for nav lights with tricolor lens.

2) We have our red, green, and white LED bulbs (our nav bulb LED engines) certified in nav lights with the corresponding colored lens for the 2nm intensity and the needed colors.

3) We do not recommend using white LED on nav lights with colored lens.

The reason being white LED emits mostly blue and yellow light (human see this as white, but not enough for 2nm for the red and green lens).  By using red LED on nav lights with red lens, only the needed red light is produced and will pass thru the red lens.  The same reason for green nav lights.  This is the best way to do this.

By the way, incandescent bulb emits a broad spectrum of light.  That is why you need to use a 25W incandescent bulb for 2nm red or green lens light but only need to use a 10W one for a clear lens.  This is no longer the best way to do nav lights.
