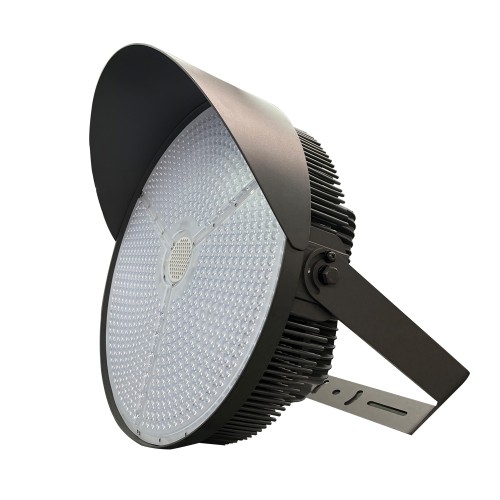

700W Pinnacle Bering Sea Amber LED Light   PN:9000739

Dr. LED has created the perfect LED replacement for forward-facing 1000W High Pressure Sodium lights.  Finally! An amber LED light designed to replace your sodium lights. Fishermen know that white light doesn’t work facing forward, and it’s about time there was a light made for us.  We’ll only produce lights with a stainless steel mounting bracket - aluminum or steel (shudder!) brackets just don’t last. All fastening components are also 316SS and installed with a barrier gel to help isolate them electrically from the housing. To fit the majority of vessels, the integral power supply /driver accepts 100-277V AC and includes 40kV surge protection.

Bering Sea tested, fisherman approved.

Beam Pattern specially designed for Forward-Facing Lights.

Instant-on, no warm-up needed.  No re-strike issues.

 This light uses state-of-the-art ultra-efficient heat management and LED technologies to ensure high reliability and robust marine operation.

·        UL Listed /  FCC Compliance  (EMI Suppression)

·       Wide Input Voltage Range (120V, 208V, 240V) & Under / Over Voltage Protected

·       40kV Transient Voltage Protected

·       Stainless Steel U Bracket and Fasteners

Specifications:

Part Number 9000739

Model Name 700W Pinnacle HPS LED Light  UL E156136

Light Output (Color Temp) Amber 2200 K

Lumen Output >80,000 Lumens

Beam Patterns NEMA1/NEMA2

LED Lifespan 50,000+ Hours

Nominal Wattage 700W

Input Voltage Range 100-277VAC 47~63Hz 40kV Surge Protection

Nominal Current Draw 5.8A (120V), 3.4A (208V, 2.9A (240V)

Electrical Connection 18AWG 600V 3C 1200mm (47") Cable

Operating Temperature -40°F to 131°F (-40°C to +55°C)

Weight (lb) 35 lb

Dimensions 19.1" x ~20" (@ 45 deg Bbracket Angle)

Case Material Powder Coated Die Cast Aluminum Case

Fixture Color Dark Brown

Mounting Stainless Steel U Bracket

Water-Proof Rating IP67 Rated
