Inline LED Dimmer Switch
Price: $8.99
Ex Tax: $8.99
Ex Tax: $8.99
Qty:
- OR -
Add to Wish List
Add to Compare
Add to Compare

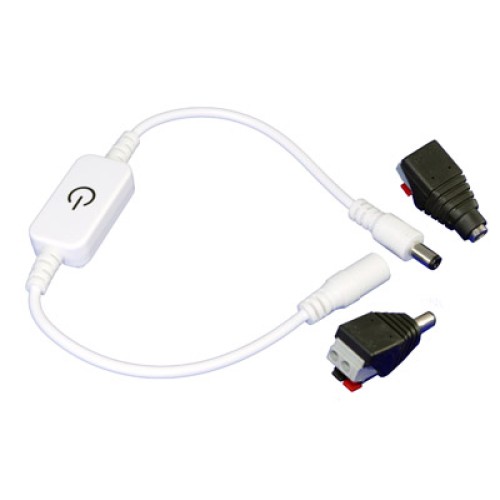

12VDC 2A Low-Profile Inline LED Dimmer Switch
Capacitive Touch On/Off Dimmer Switch
Two Quick-Connect Terminals Included
Connection Type: DC Plug 5.5mm x 2.1mm (Input: M and Output: F)
Inline LED Dimmer Switch PN:9000012
This easy-to-use LED Dimmer Switch allows you to turn on and off and adjust the brightness of a LED light (or other non-inductive devices, no fan or pump) with a light touch of the switch.
Tap the switch briefly (on the switch symbol) to turn the LED on or off. While the light is on, touch and maintain contact with the switch to brighten or dim the light. Each long touch will alternately brighten or dim the light. Release contact at the desired intensity level. Tap the switch briefly again to turn the light off.
| Part Number | 9000012 |
| Model Name | Inline LED Dimmer Switch |
| Input Voltage | 12VDC |
| Max Input Power | 24W |
| Max Input Current | 2A |
| Polarized Connection | Yes |
| Operating Temperature | -4°F to 140°F (-20°C to +60°C) |
| Switch Body Dimensions (inch) | 1.7 x 0.86 x 0.44 |
| Weight | 0.71 oz |
| Water Ingress Rating |
IP65
|
| Finish Color |
Black or White ( Please let us know which color you want.) |
| Accessories | Two Quick-Connect Terminals Included |
| Electrical Specfications | |
| Dimmable | Built-In. |
